Honeycomb conveyor wire mesh belt used for Spraying industry
1 Introduction of Honeycomb conveyor wire mesh belt
Honeycomb Conveyor wire mesh belt - Predominant Choice in Food Industrial

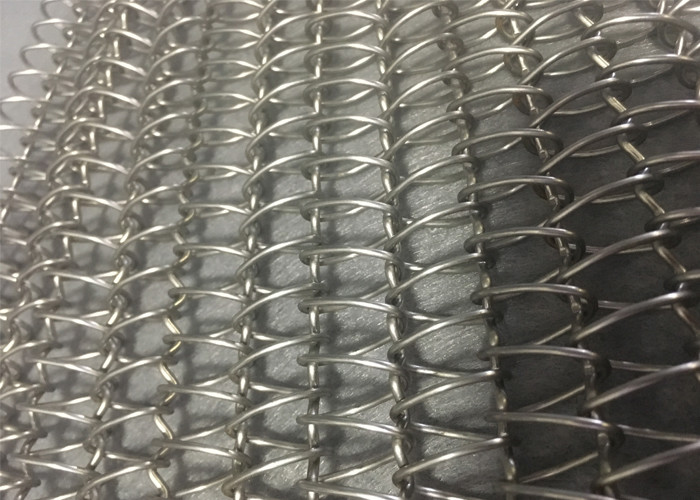

Honeycomb Conveyor wire mesh belt, also known as wide spiral link belts, are constructed of round or flat spiral wires joined by crimped rods. Driven, tensioned and guided by a sprocket or a plain roller, balanced weave conveyor belt is an economical choice to provide smooth and stable movement for medium load applications and various others as shown below:
Food processing industrial such as draining, cooling, baking and washing, etc.
Glass and ceramic industry.
Metalworking and hardening.
Chemical industry such as conveying rubber and plastic products.
Serving as screen, guard and mesh panels.
Decoration.
Acting as heat treatment belt or pasteurizing belt, etc.
| Item | Honeycomb conveyor wire mesh belt |
| Dia of Coil Wire | 0.8-4mm |
| Dia of Cross Wire | 0.8-4mm |
| Coil Wire Pitch | 5.08/6.35/7.26/10.16/16.94mm or customized |
| Cross Wire Pitch | 5.08/6.35/8.47/12.7/19.05mm or Customized |
2 Features of Honeycomb conveyor wire mesh belt
Conveyor wire mesh belt fetures are Ideal for conveying lightweight products , High tensile strength with minimal stretch , Excellent resistance to high temperature , Low thermal capacity , Low cost .
3 Application of Honeycomb conveyor wire mesh belt
Conveyor wire mesh belt has many kinds of application . such as Annealing and cleaning facilities , Wrapping machines , Serving as metallic screen at lifting platforms , Metal working industry even at a high temperature .
